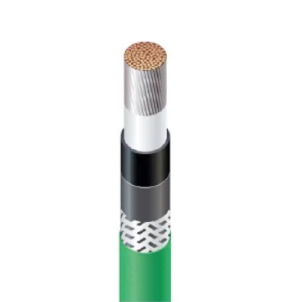

APPLICATIONS AND FEATURES: This specification covers the construction requirements for a limited smoke, non-halogenated power cable insulated with UL listed Type RHH, FT4-ST1 in accordance with the National Electrical Code. Product is for use in Central. Office, CATV Head End, Data Center and Cell tower applications. Cable is suitable for UL “CT USE” (Cable Tray rated) in sizes 1/0AWG and larger.
CONSTRUCTION:
1.Conductors: Class I modified bunched (8 and 6 AWG) or rope bunched (4 AWG and larger) tinned copper
2.Separator: Mylar tape
3.Insulation: Limited smoke, non-halogenated, 105°C Dry, 60°C Wet

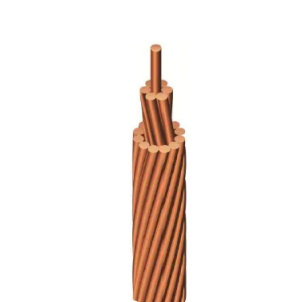

Suitable for uninsulated hook up, jumpers, and grounds in electrical construction
Design Standard: ASTM B3, B8
Construction: Bare copper, solid or stranded. Available in tempers hard, medium-hard, or soft. Stranded conductors are concentrically stranded in hard and medium-hard tempers and are combination unilay stranded in the soft-drawn temper.

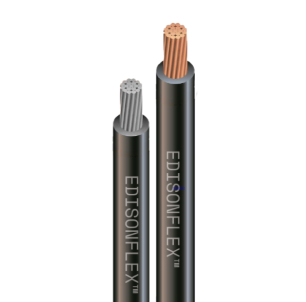

RPVU90 cables may be installed indoors or outdoors, in raceways and conduits, both above and below ground, and may be direct buried. Direct buried installations must comply with CE Code Rules 12-012 and 4-004. They are 90ºC, 2 kV rated, and suitable for use in a photovoltaic system.
Type RPVU90 cables are for use on the DC and AC side of a photovoltaic system, suitable for installation in both wet and dry locations, and may be exposed to sunlight.
RPVU90 cables are RoHS Compliant.
Applications: Used as feeder circuit, in electric utility generating stations, for distribution circuits, and for feeders or branch circuits in industrial and commercial installations. It may be installed in wet or dry locations, indoors or outdoors (exposed to sunlight), in any raceway or underground duct, directly buried if installed in a system with a grounding conductor. Low temperature to -40C.
Specification: ASTM B231 Standard Specification for Concentric-Lay-Stranded Aluminum 1350 Conductors CSA C68.5 Standard ICEA S-94-649 Standard for Concentric Neutral Cables Rated 5 – 46kV AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV CSA Listed
Application: For concealed wiring in dry or wet locations For exposed wiring in dry or wet locations. For exposed and wiring in dry, locations where subjected to corrosive action if suitable for corrosive conditions encountered. For exposed wiring where subjected to the weather. For use in ventilated, Non-ventilated and ladder-type cable trays in dry or wet locations. For direct earth burial (with protection as required by inspection authority). For service entrance above or below ground.
Voltage: 1000V
Standard: CUL1569. CSA Standard C22.2 No. 131, No.38 and No.2256, RoHS
Suitable for open and concealed wiring in dry, damp, or wet locations, including underground installations. Approved for direct burial in accordance with CSA C22.1:24 (CEC) Rule 12-602 and Table 19. May be installed in cable troughs, ventilated flexible cableways, or embedded in masonry or concrete. Minimum recommended installation temperature: −40 °C (with suitable handling procedures). Maximum conductor temperature: 90 °C. Approved for use with ceiling fixtures.
Armoured cable for commercial, industrial, and multi-residential applications.
Standard: CSA Standard C22.2 No. 51-20
Voltage：600V
Working temperature: Rated at 90°C wet or dry
Performance: Flame test compliances: FT4
Conductor: Aluminum conductors (aluminum alloy 8000 series) with one bare grounding wire
Conductor: annealed bare copper wires, or compact aluminum 8000 series wires, class B.
Insulation: Heat and moisture resistant, low temperature Cross-Linked Polyethylene (XLPE)
Type RW90, -40°C to +90°C
Application: For open wiring and raceways (except cable troughs and ventilated flexible cableway) in dry or wet locations. For exposed wiring where exposed to weather with sunlight resistant insulation. Approved for use with ceiling fixtures
